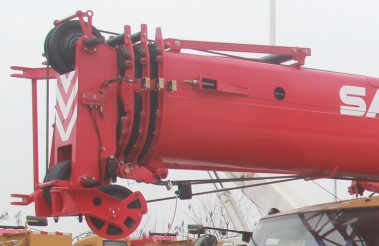

【Boom】Powerful telescopic boom: 1.The boom has a full extension length of 35m and a maximum lifting moment of 1078kN·m. 2.The boom system has a large cross-section with high rigidity, which, together with its PE wear pads, ensures the smooth movements.
-

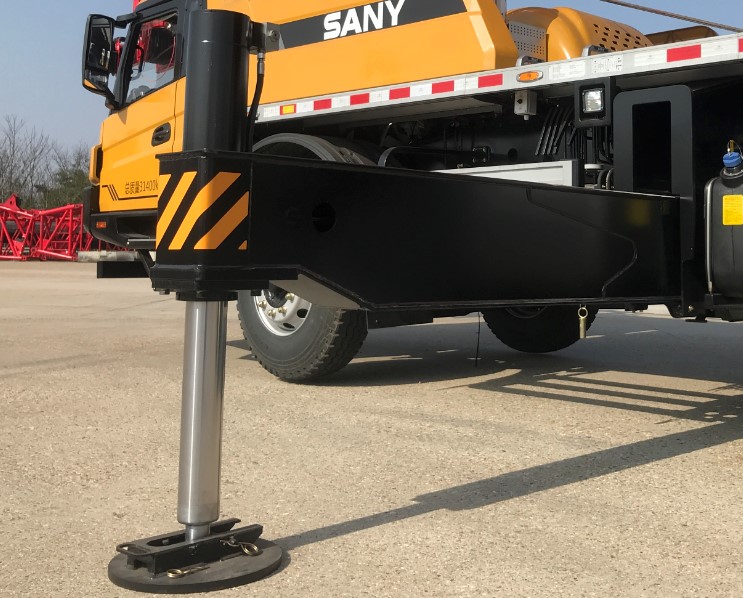

【Outrigger】Large span outrigger: The outrigger features an industry-leading span of 6.4m, a large cross section and the low-position arrangement, ensuring high loading performance and high stability.
-
【Counterweight】Large arc counterweight: the arc counterweight is eye-pleasing; The distance between the counterweight and the platform is increased to 620mm for no scratching during swing.
-

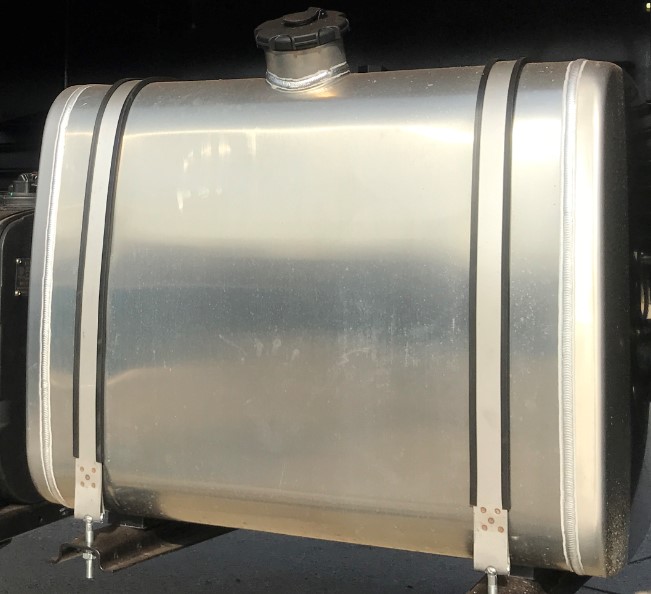

【Fuel tank】Large-capacity fuel tank: The 300L fuel tank is made of aluminum alloy, which contributes to a 900km range.
-
【Auxiliary hook】Auxiliary hook block: The 5t auxiliary hook is provided as standard, ensuring more convenient and faster operation.
-

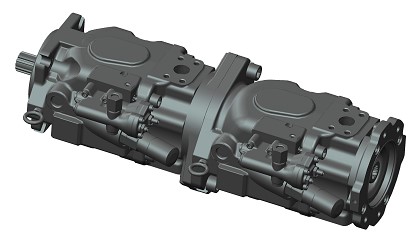

【Piston pump】High-quality piston pump: The double variable-displacement piston pump with high quality and stability is applied to ensure a maximum hoisting speed of 130m/min and a maximum swing speed of 2.5r/min, which greatly improved the operation efficiency of the vehicle.
-

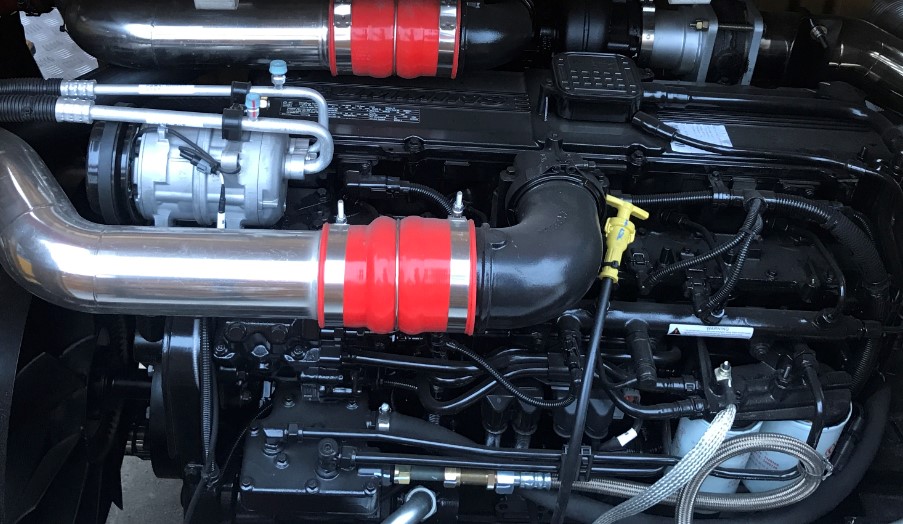

【Engine】Powerful engine: The Dongfeng Cummins ISLe290 30 high power engine works in concert with the 9-speed synchronizing transmission, ensuring the maximum speed of 85km/h, the maximum gradeability of 40%.
-

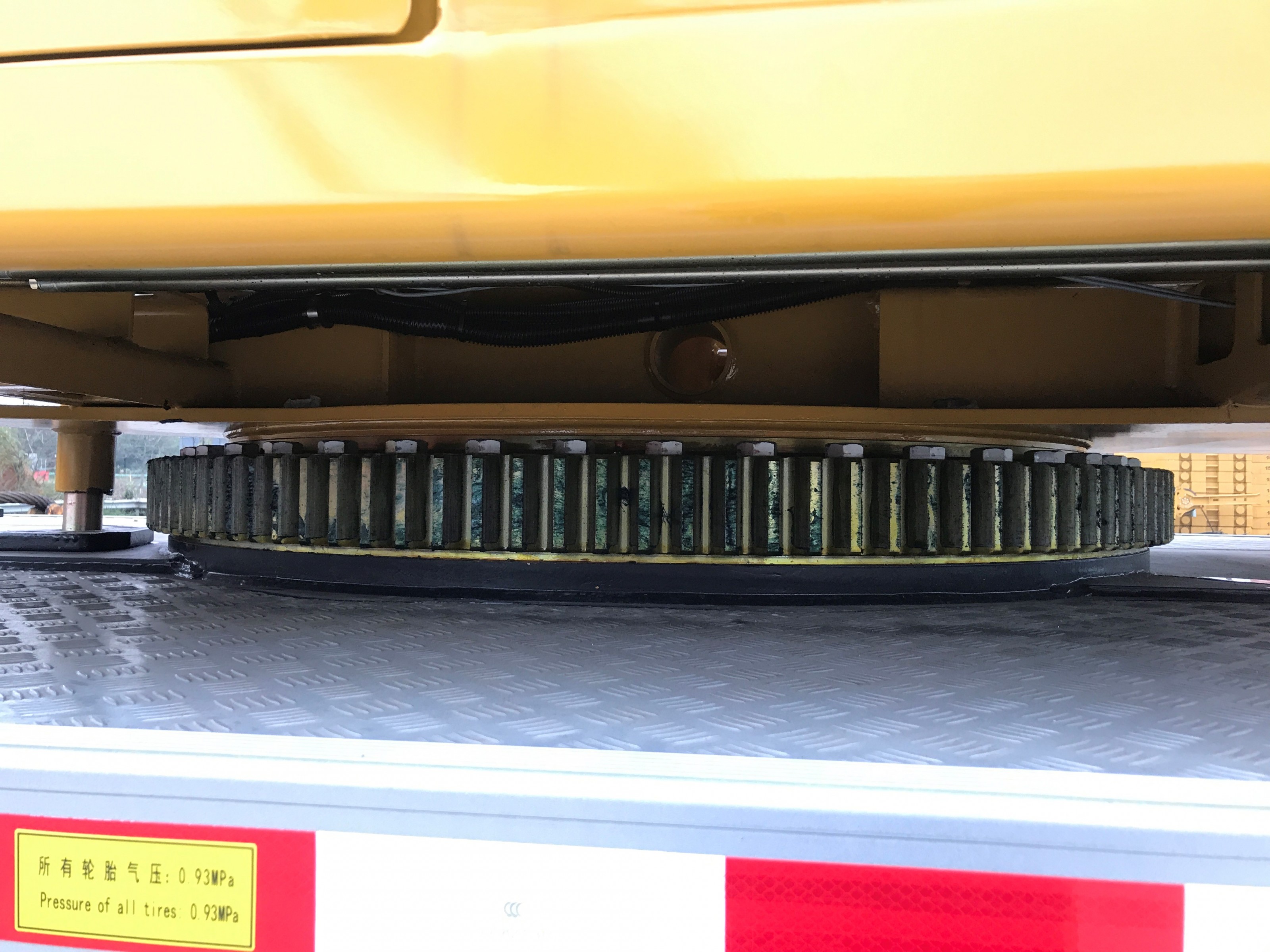

【Slewing】Low speed high torque slewing mechanism: The high torque piston motor and low speed high torque drive are applied to ensure the stability of operation under larger radius and heavy load.
-

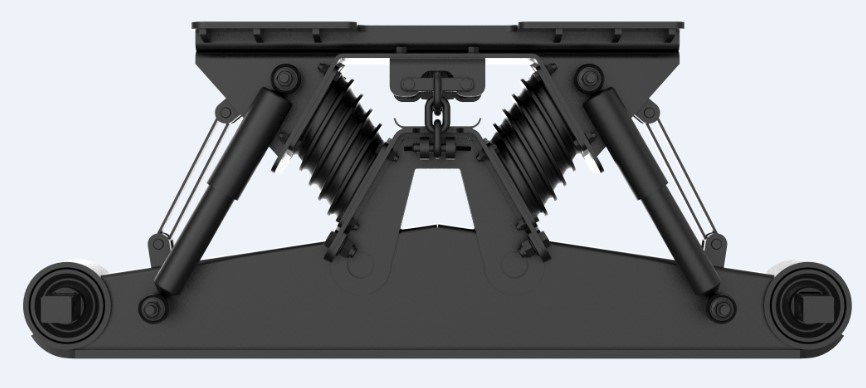

【Suspension】Rubber suspension: The rubber suspension is applied to ensure efficient vibration absorption and more comfortable driving.
-

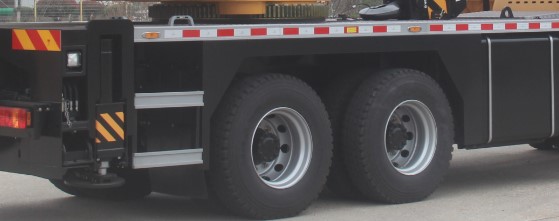

【Tire】Steel tire: The 12R22.5 steel tire is provided as standard to ensure a high durability.
-

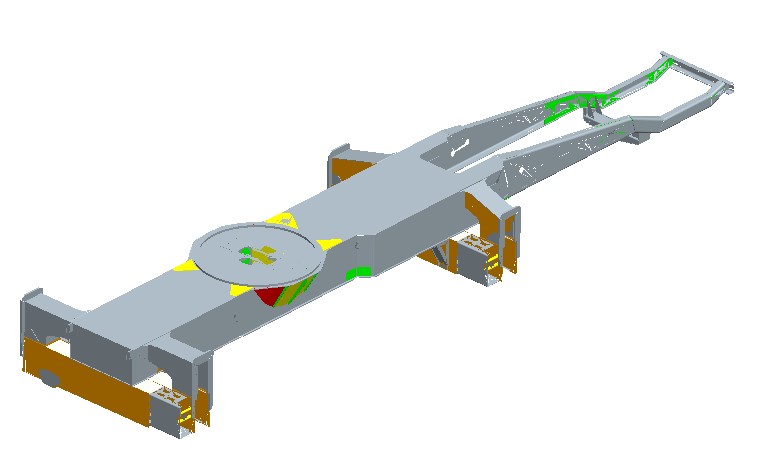

【Frame】Heavy-duty high-strength frame: The innovatively structured frame ensures a 30% higher bending and torsional performance, which is proved highly reliable by 30,000 high-strength fatigue tests.
-
【Safety distance】Sufficient safety distance: The distance between the platform and the operator’s cab is up to 240mm, ensuring no scratching to the operator’s cab during swing.
-

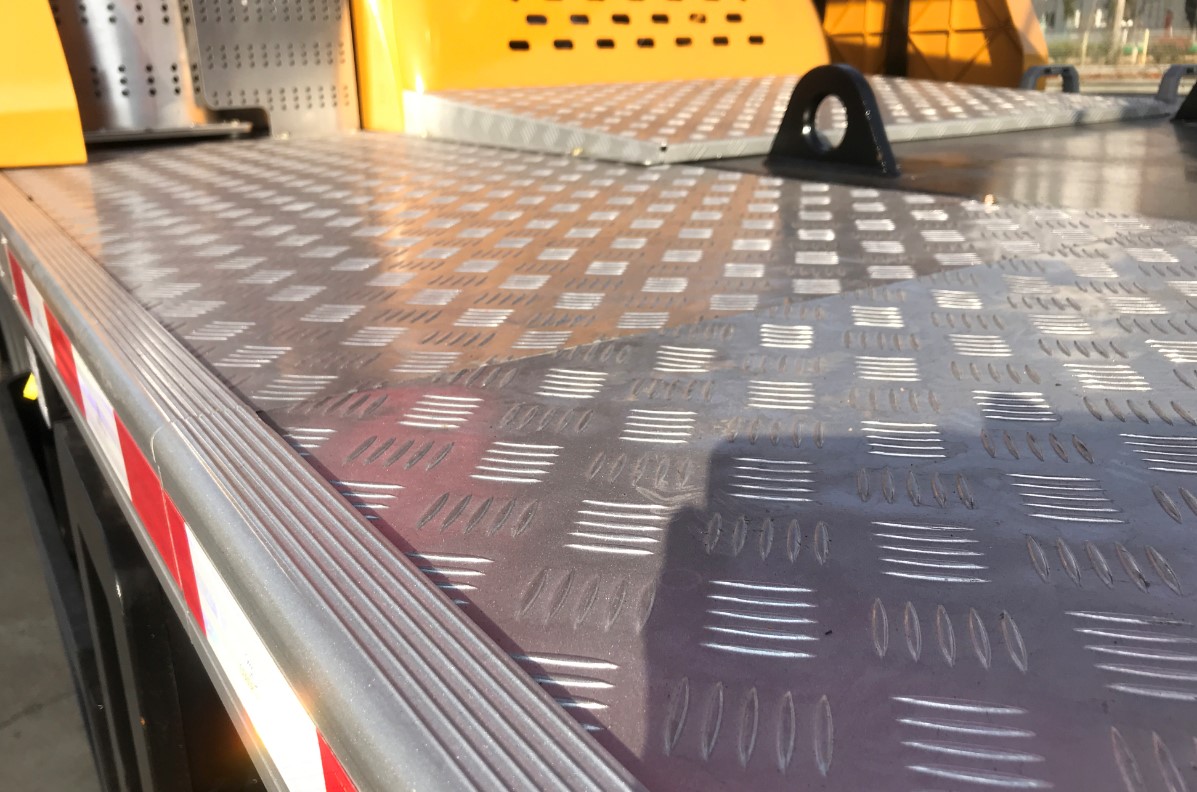

【Walking deck】Low-mounted walking deck: 1. The ground clearance of deck is reduced to 1430mm, making handling of sleepers easier; 2. The deck is designed with an abundant space to accommodate more accessories.
-
【Enclosure】All aluminum alloy enclosure: The platform, splashboard and guardrail are made of aluminum alloy to ensure pleasant appearance and rust resistance.
-

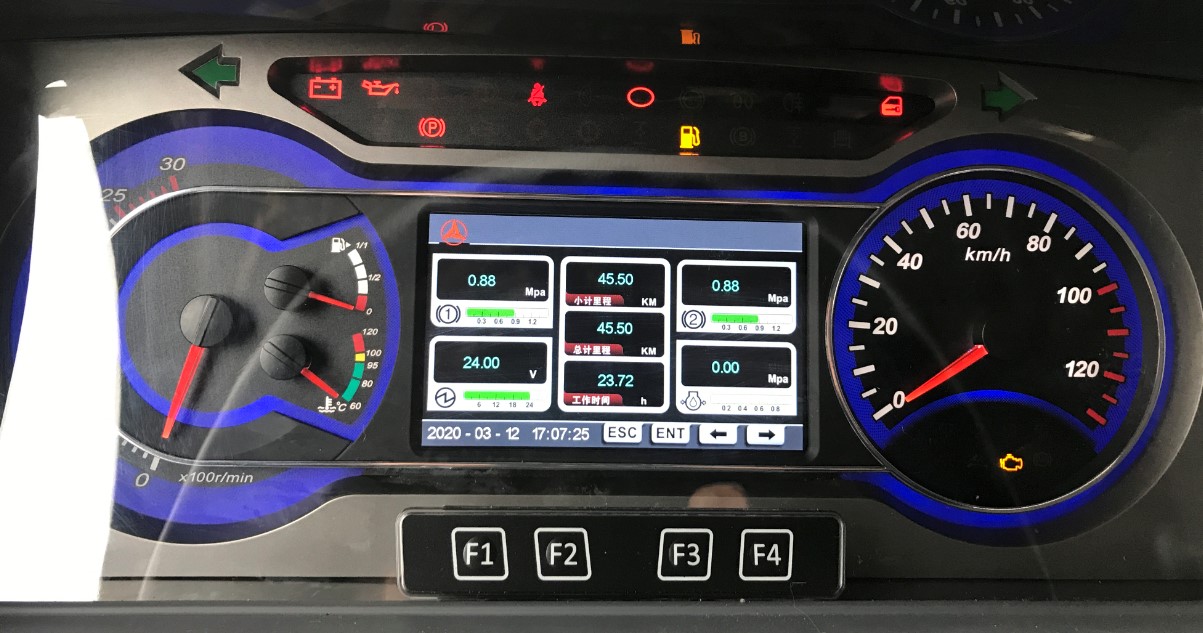

【CAN Bus】Bus instrument: High quality CAN Bus instrument and 5-inch color LED together with sensitive keys are applied to improve the luxury sense and operation convenience of the vehicle.
-

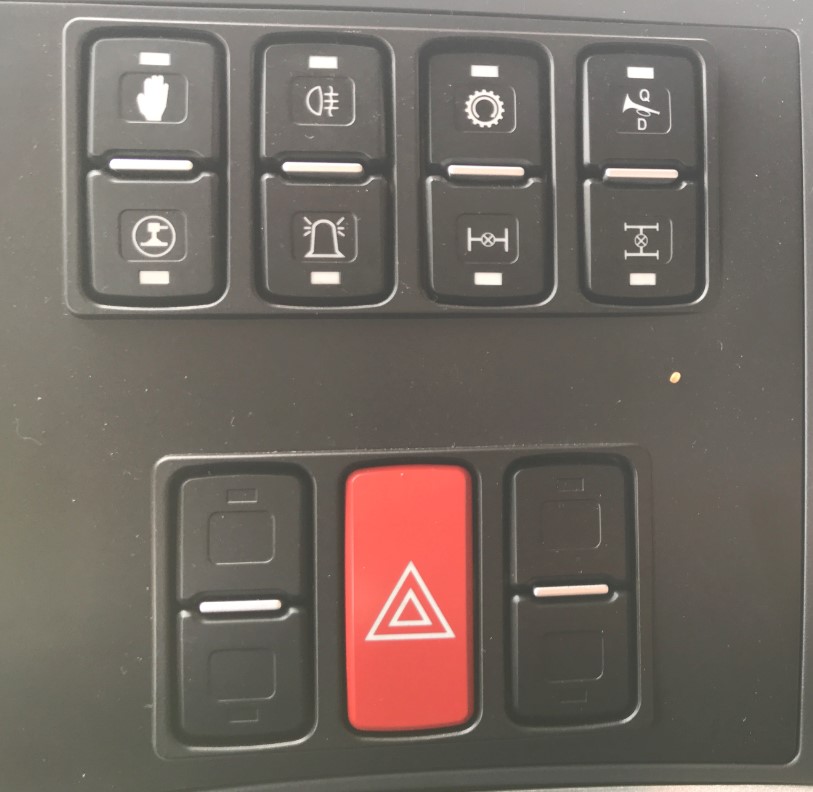

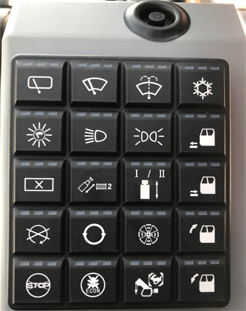

【Panel】Bus key panel: It is simple, elegant, good to touch and highly reliable.
-

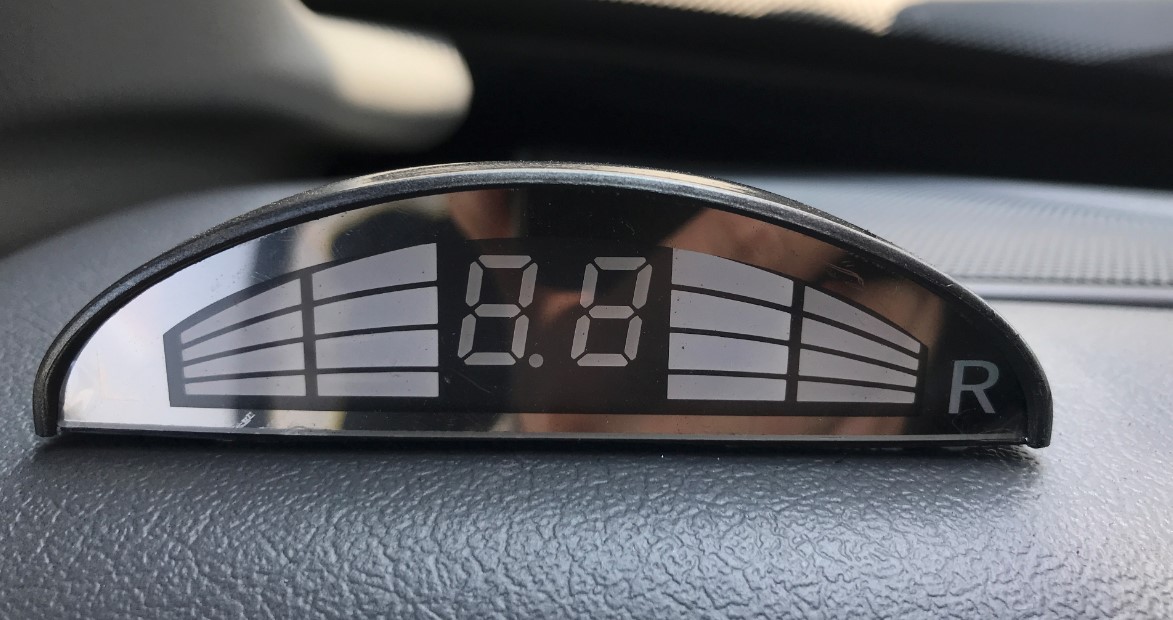

【Reverse】Smart reverse radar: All-round detection of obstacles at a distance over 2.5m, together with warning sonar, ensures you with a safe and precise reverse.
-
【Transmission】9-speed transmission, with one-key gear shift between high and low speed.
-

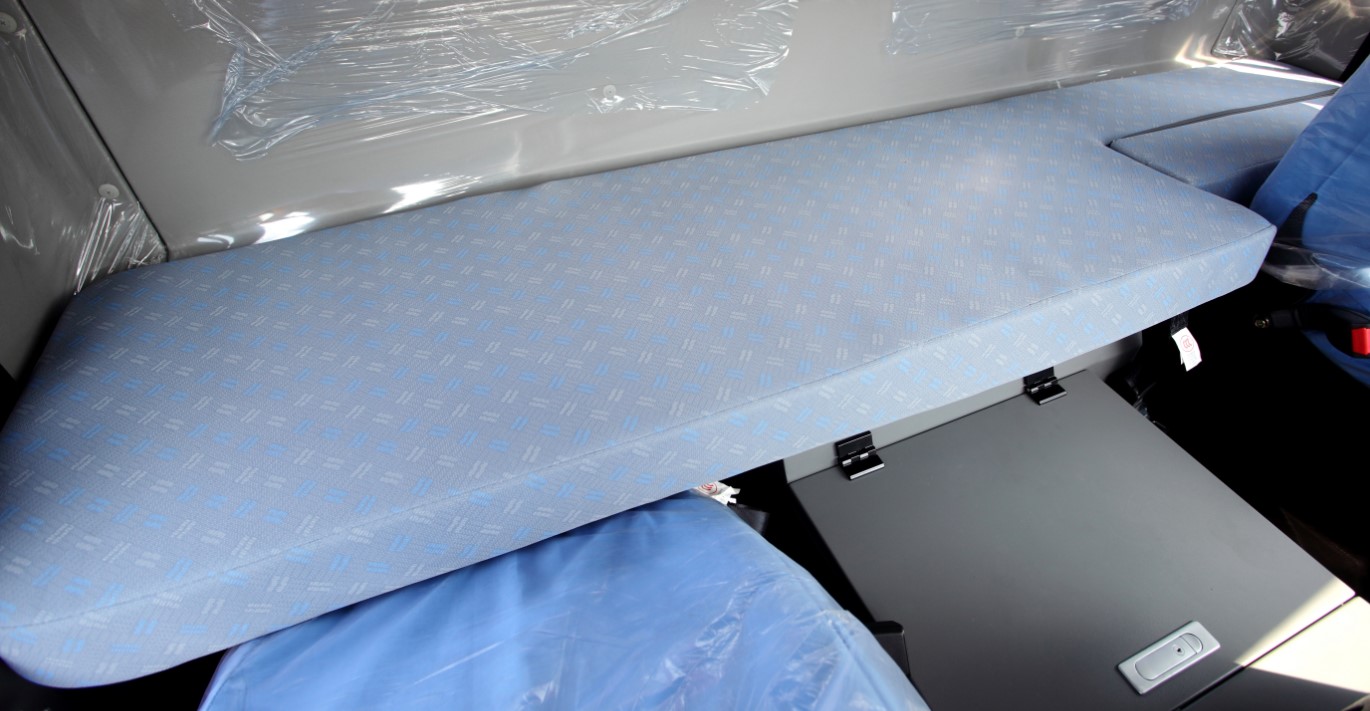

【Berth】Comfortable berth: The optional berth is a good choice for you to have a rest.
-

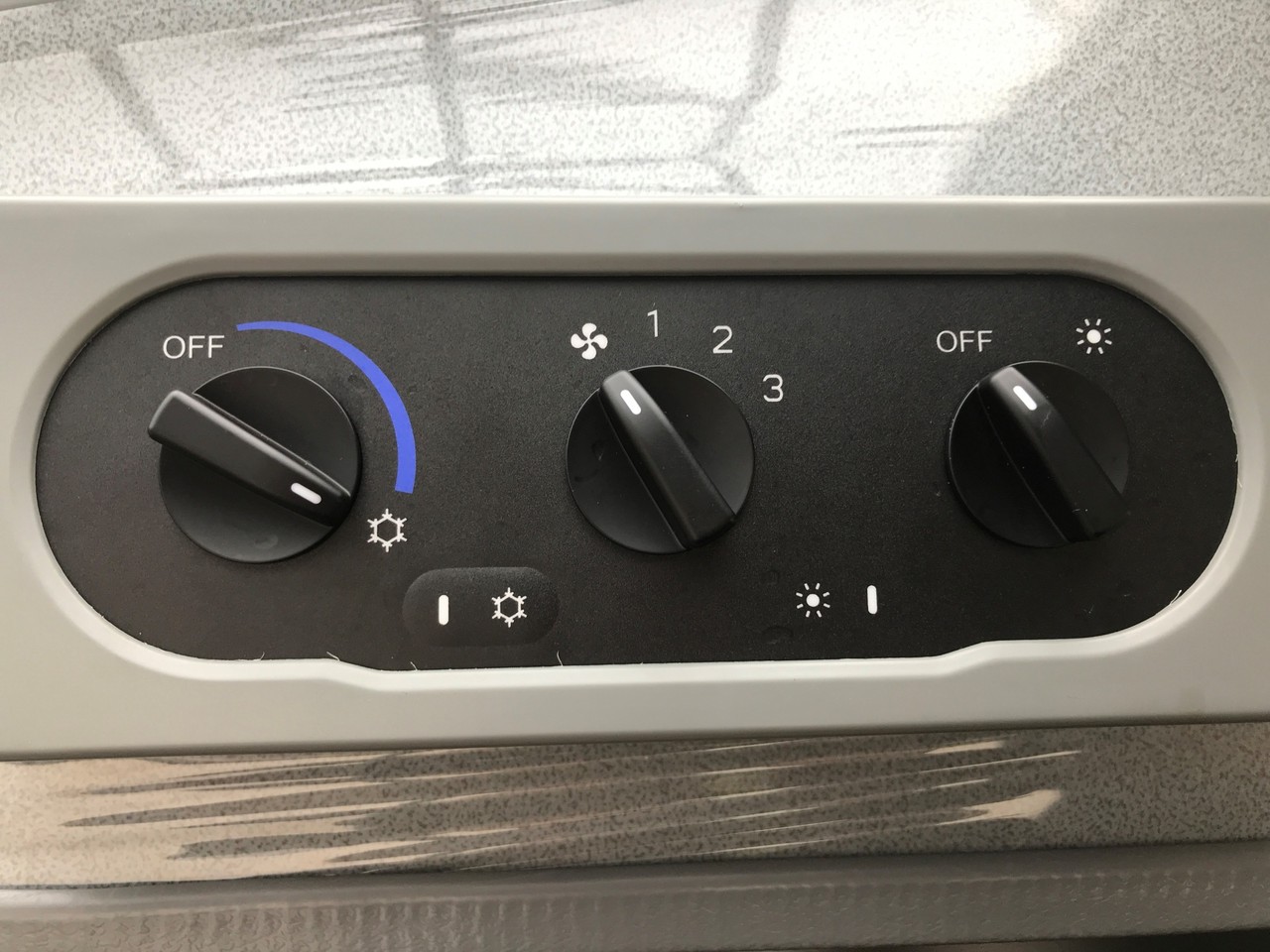

【Air conditioner】Comfortable air conditioner: Branded air conditioner and its multi-outlet air supply system provides driver and passengers with the ultimate comfort.
-
【Air conditioner】Comfortable air conditioner: Branded air conditioner and its multi-outlet air supply system provides driver and passengers with the ultimate comfort.
-
【Interior trim】“Space capsule” operator's cab: Interior trim such as the new-designed myrtle grain dashboard and armrest box are simple, practical and durable.
-

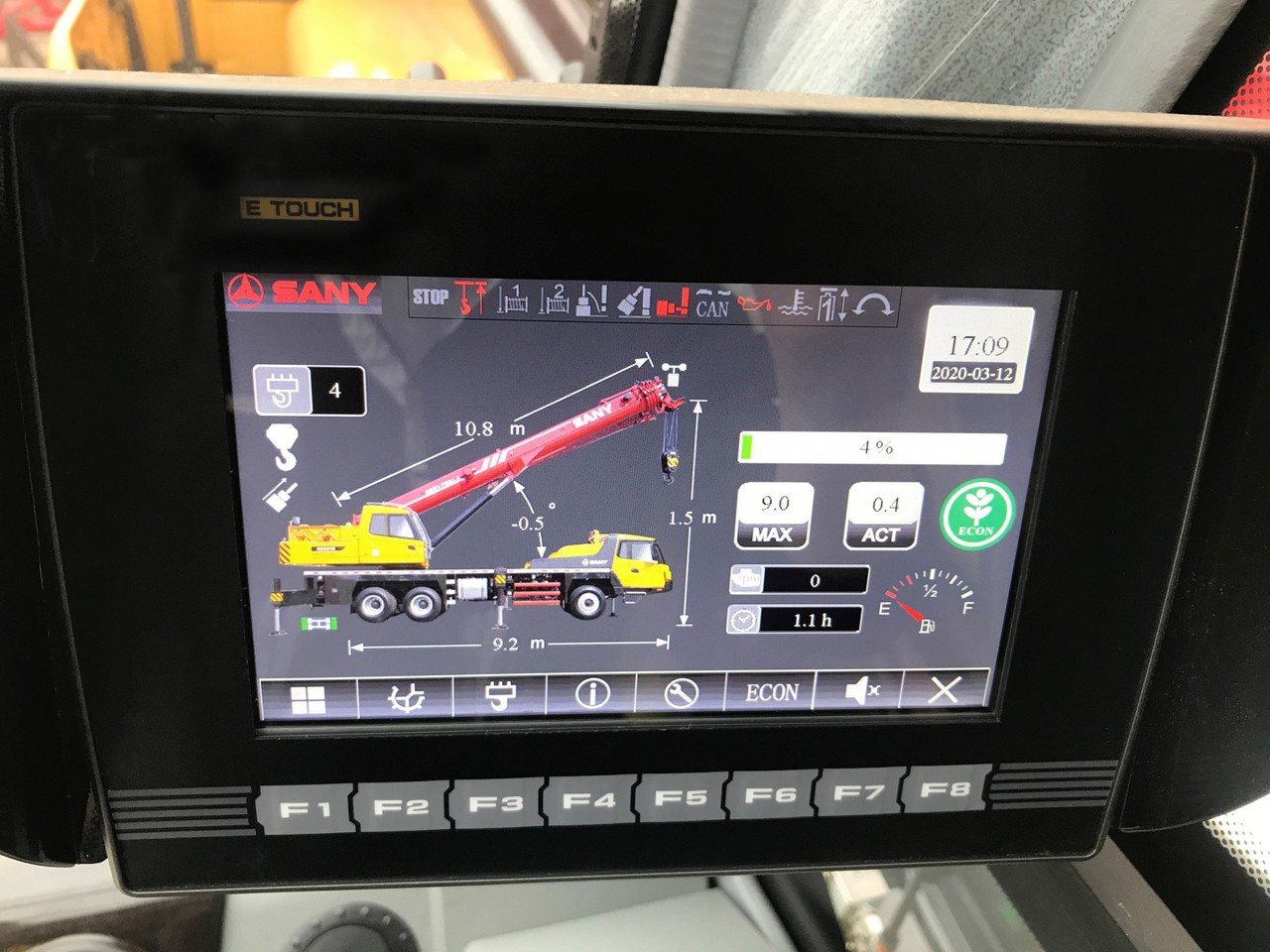

【display】7''color display screen: The 360° large HD screen supports the display of engine running parameters.
-
【Switch】Button switch: The brand-new button switch with state indication is designed 45° tilted to provide convenient operation.
-

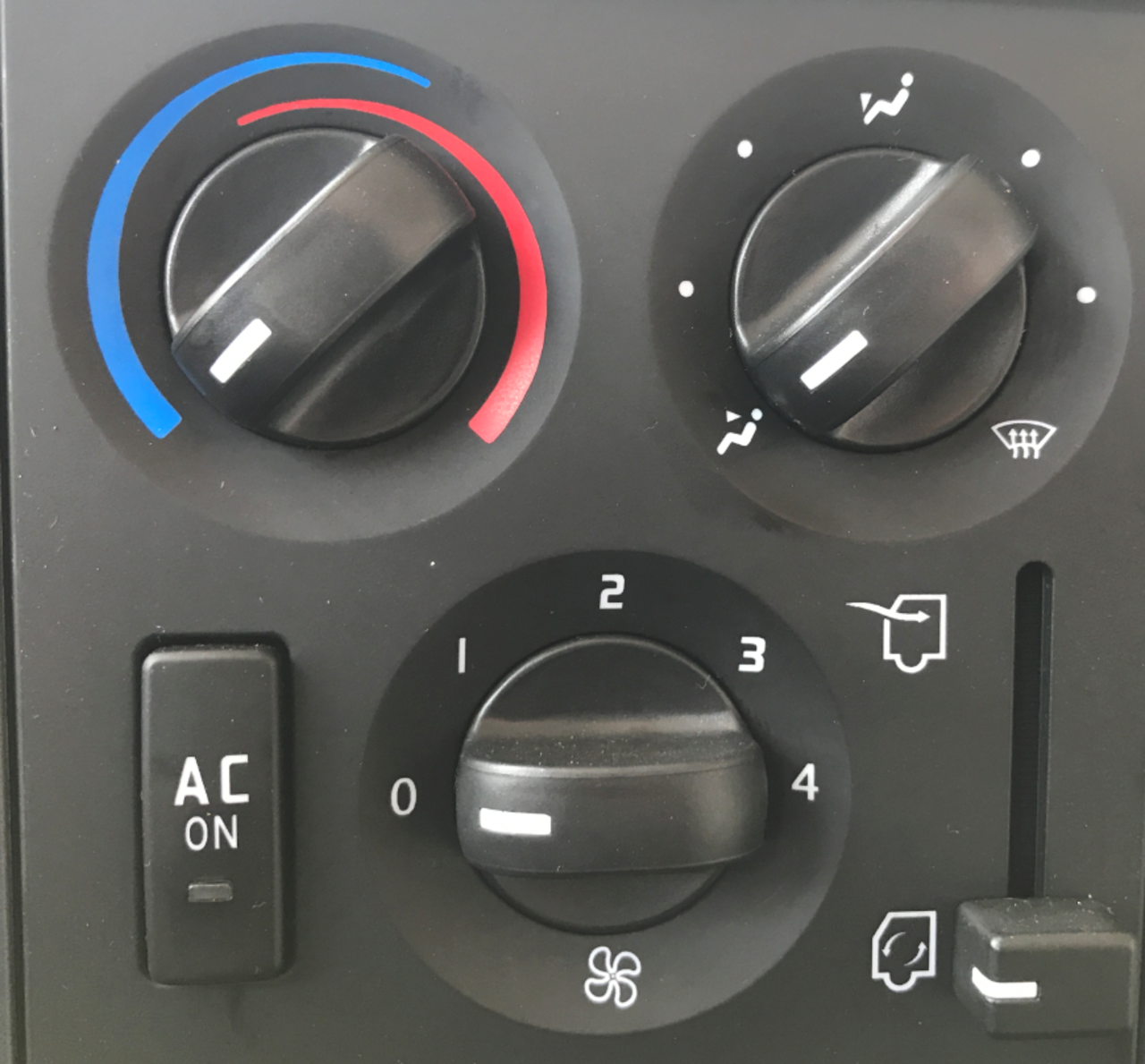

【HVAC】HVAC control: The intelligent integrated control of air conditioner is easy to operate and brings a riding experience similar to cars.
-

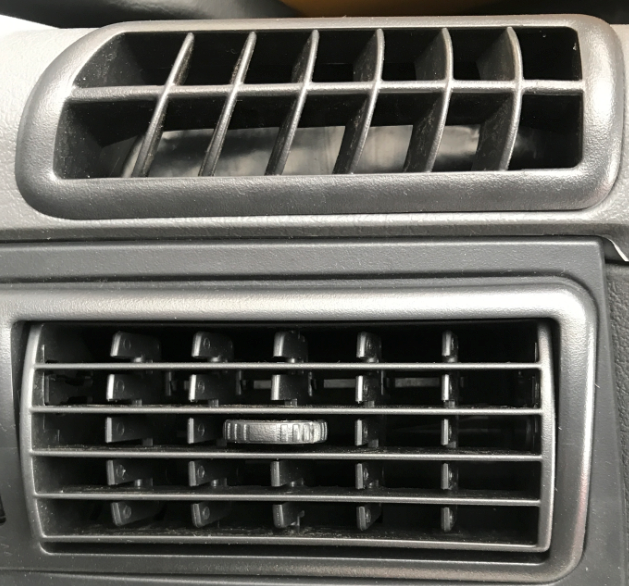

【Air conditioner】HVAC wide-angle air supply: The 7-channel wide-angle air supply system makes the operator feel more comfortable.
-
【Air conditioner】HVAC wide-angle air supply: The 7-channel wide-angle air supply system makes the operator feel more comfortable.
-
【Air conditioner】HVAC wide-angle air supply: The 7-channel wide-angle air supply system makes the operator feel more comfortable.
-
【Cab space】Internal space optimization: The electrical control box is relocated outside the operator’s cab, the seat width ifs increased to 450mm, the leg space is increased by 30%, and door opening is increased by 20%.
-

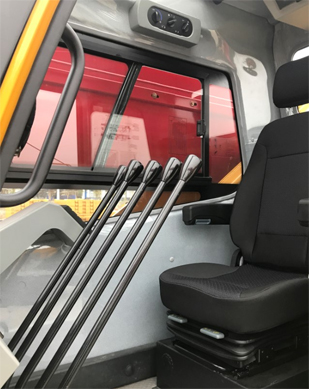

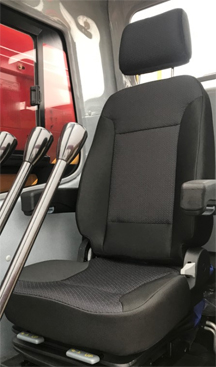

【Seat】Adjustable seat: The seat features a maximum backward angle of 140°, which, together with a proper height of the dashboard, allowing operators to have a rest.
-
【ECO mode】ECO mode and Strong mode shift with a key, ensuring a good adaptation to different working conditions and saving the fuel consumption by 10%.
